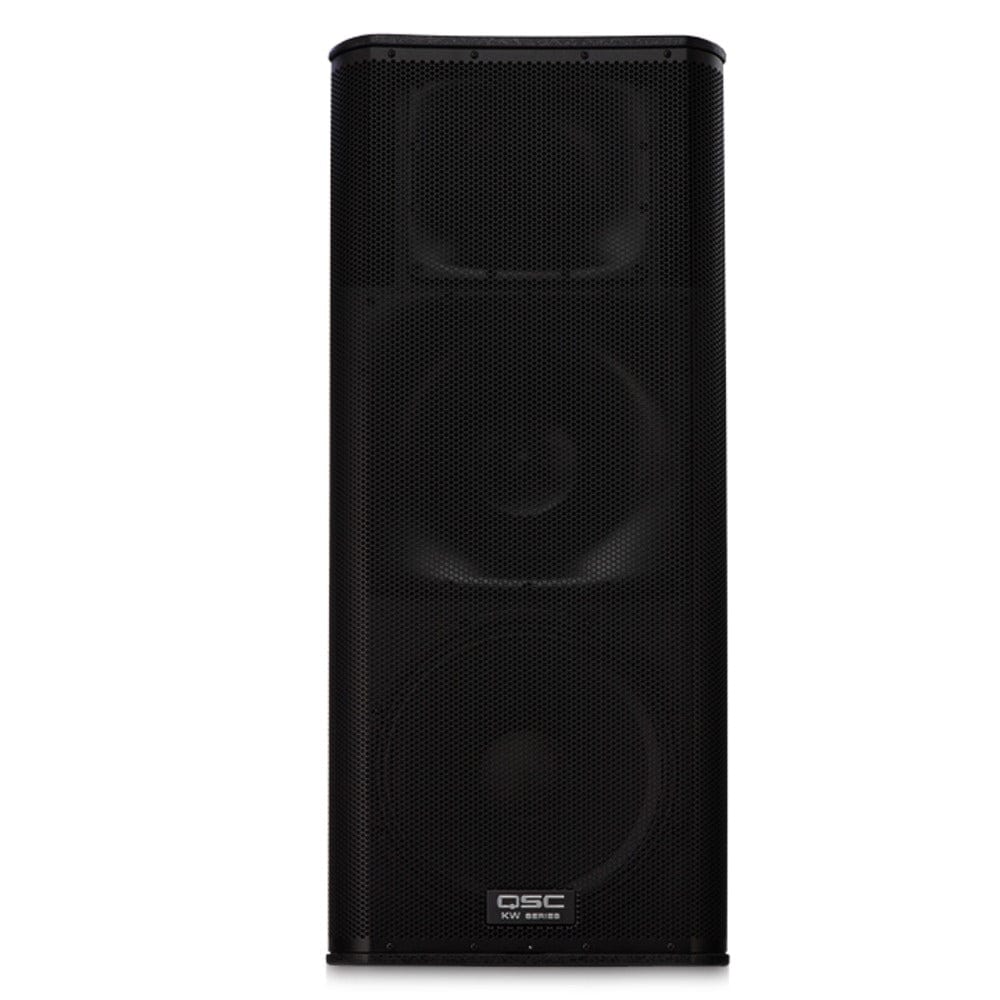

- QSC KW153 15-inch 3-way Active Powered Loudspeaker Overview:
- Features:
- 15-inch woofer; 6.5-inch midrange woofer; 1.75-inch diaphragm compression driver
- 75° conical DMT coverage
- Maximum SPL 134 dB peak
- 1000-watt Class D power modules in all models (2 × 500 W continuous)
- Onboard mixer with two combo XLR and ¼⁻ᶦⁿᶜʰ inputs, and stereo RCA inputs, (three audio input sources); two direct channel outputs and single summed balanced output
- Extensive DSP featuring DEEP and Intrinsic Correction enhances system performance
- Directivity Matched Transition (DMT) ensures uniform coverage across the entire sound field
- Rugged, texture-painted birch enclosures
- Four-position Mic/Line gain
- Tour-grade 16 gauge steel grilles
- Comfortable ergonomic handles
- 35 mm standard (non-tilt) pole socket
- M10 rigging points for suspended installation
-
Specifications:
- Configuration: 15-inch 3-way trapezoidal
- Transducers
- Low-frequency
- Mid-frequency
- High-frequency 15-inch cone transducer
- 6.5-inch mid range cone transducer
- 1.75-inch diaphragm compression driver
- Frequency Response (-6 dB): 35 Hz to 18 kHz
- Frequency Range (-10 dB): 33 Hz to 20 kHz
- Nominal Coverage (-6 dB): 75° axisymmetric
- Maximum SPL1: 134 dB peak
- Amplifier
- Power Output2:
- 1000 W Class D (500 W LF + 500 W MF/HF) continuous
- 2000 W peak
- Input Impedance:
- Channel A XLR / ¼⁻ᶦⁿᶜʰ:
- Mic gain setting
- 0 dB
- +12 dB
- +24 dB
- +36 dB
- Balanced
- 38 kΩ
- 10 kΩ
- 2.66 kΩ
- 660Ω
- Unbalanced
- 19 kΩ
- 5 kΩ
- 1.33 kΩ
- 330Ω
- Channel B XLR / ¼⁻ᶦⁿᶜʰ: 38 kΩ balanced / 19 kΩ unbalanced
- Channel B RCA: 10 kΩ
- Controls: Power, Gain A, Gain B, Channel A Input Gain (0 dB / 12 dB / 24 dB / 36 dB), LF Mode (Ext Sub/Norm/DEEP™), HF Mode (Flat/Vocal Boost), Front LED (On/Off/Limit)
- Indicators: Power, Signal A, Signal B, Standby, Limit, Mic (24 dB and 36 dB settings)
- Connectors: Balanced female XLR/¼⁻ᶦⁿᶜʰ line/mic level input, Balanced female XLR/¼⁻ᶦⁿᶜʰ line level input, Dual Balanced male XLR full range line level out , Balanced male XLR "mix" out, Stereo RCA line level input, Remote gain control, Locking IEC power connector
- Cooling: On demand, 50 mm variable speed fan
- Amplifier Protection: Thermal limiting, output overcurrent, overtemperature muting, GuardRail
- Transducer Protection: Thermal limiting, excursion limiting
- AC Power Input: Universal power supply 100–240 VAC, 50 to 60 Hz
- AC Power Consumption (1/8 Power):
- 100 VAC, 2.3 A
- 120 VAC, 2.01 A
- 230 VAC, 1.13 A
- Enclosure
- Material: 15 mm painted birch plywood
- Finish: Black textured paint
- Grille: Black powder coated 16 gauge steel
- Speaker Dimensions (H×W×D):
- 1094 × 470 × 427 mm
- 43.1 × 18.5 × 16.8 in
- Carton Dimensions (H×W×D):
- 580 × 560 × 1168 mm
- 22.8 × 22 × 46 in
- Net Weight: 39.5 kg / 87 lb
- Shipping Weight: 47.6 kg / 104.9 lb
- Available Accessories: KW153 cover, KW M10 kit
