Allen & Heath DX164 W 16 XLR Input Dx Expander

Rs. 287,900.00

Allen & Health

Digital Stage Box

AHMP0010

In Stock Sold Out 10

  • 16 mic preamps, 4 XLR outputs, Phantom LEDs
  • Wall mount or stage Dip Trap installation options
  • Daisy chain or redundant audio connections supported
  • Multiple power options: AC, screw terminal, 12V DC
HURRY ! ONLY 10 LEFT IN STOCK.
Notify Me
wishlist
compare
Print
Eleek Benefits
  • American Express
  • Mastercard
  • Visa
Eleek offers this website, including all information, tools and Services available.
GST Invoice Available
Secure Payments
365 Days Help Desk

Allen & Heath DX164 W 16 XLR Input Dx Expander

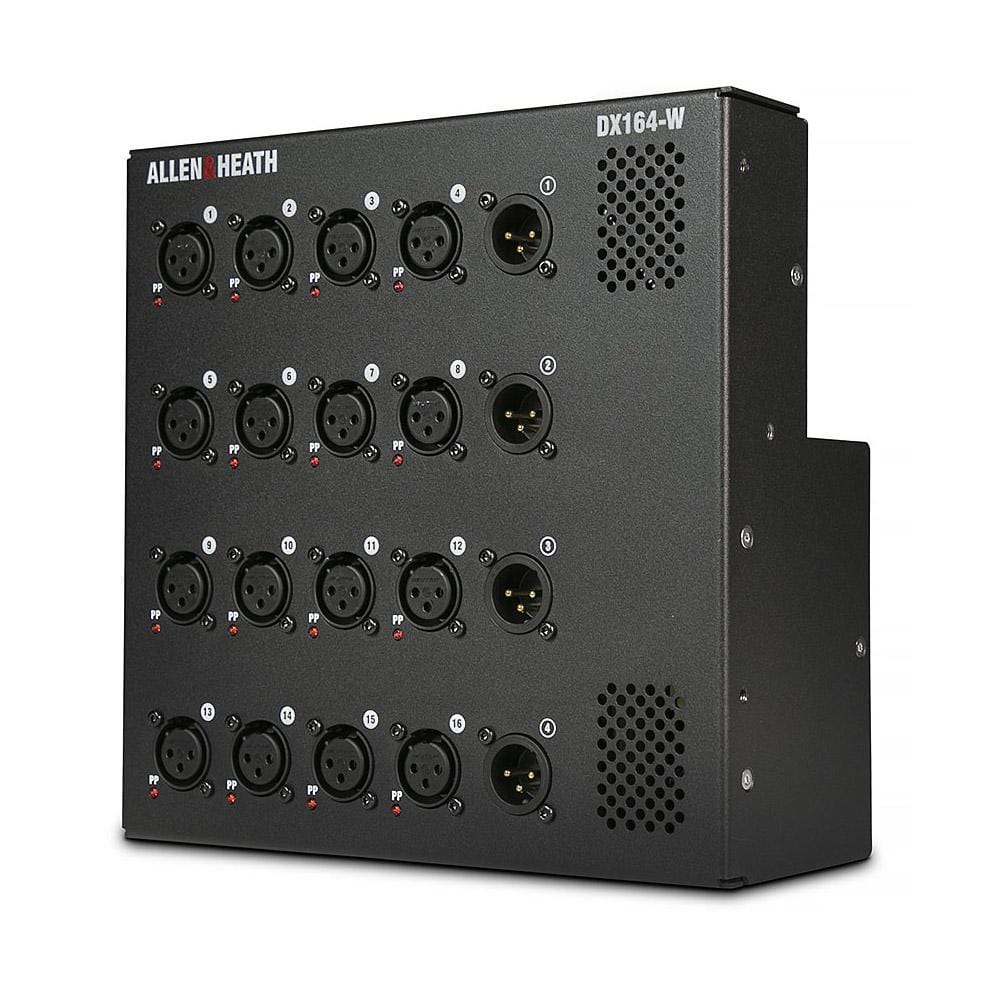

16 XLR Input / 4 XLR Output Wall Mount DX Expander
The DX164-W is a wall mountable expander that adds remote I/O to a dLive system.

Each DX164-W features 16 mic preamps with independent Phantom Power LED indicators, plus 4 XLR line outs. Up to 6 DX164-W units can be connected to a standard dLive system – 4 via the MixRack and 2 via the Surface – allowing up to 96 remote inputs and 24 remote outputs in addition to those provided by the MixRack and Surface. Up to 46 units can be added to a dLive system via a DX Link card or DX Hub (808 analogue inputs, 224 analogue outputs).

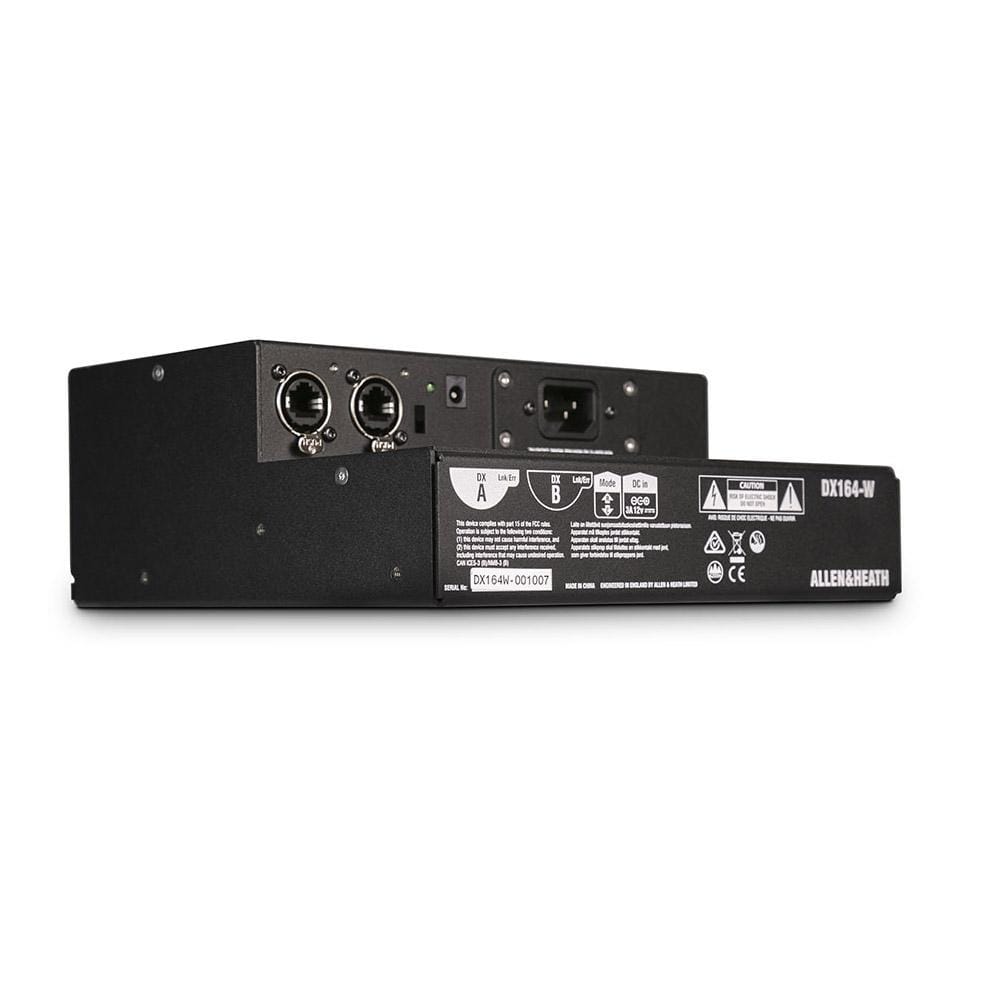

The DX164-W connects via a single Cat5e cable (Ethernet based Layer 2) to the dLive Surface, MixRack, DX Hub or upstream DX164-W / DX168 via a secure etherCON port. A second locking etherCON port is provided for redundant connection to compatible hardware, or for daisy-chaining to a downstream DX164-W or DX168 for additional remote I/O.

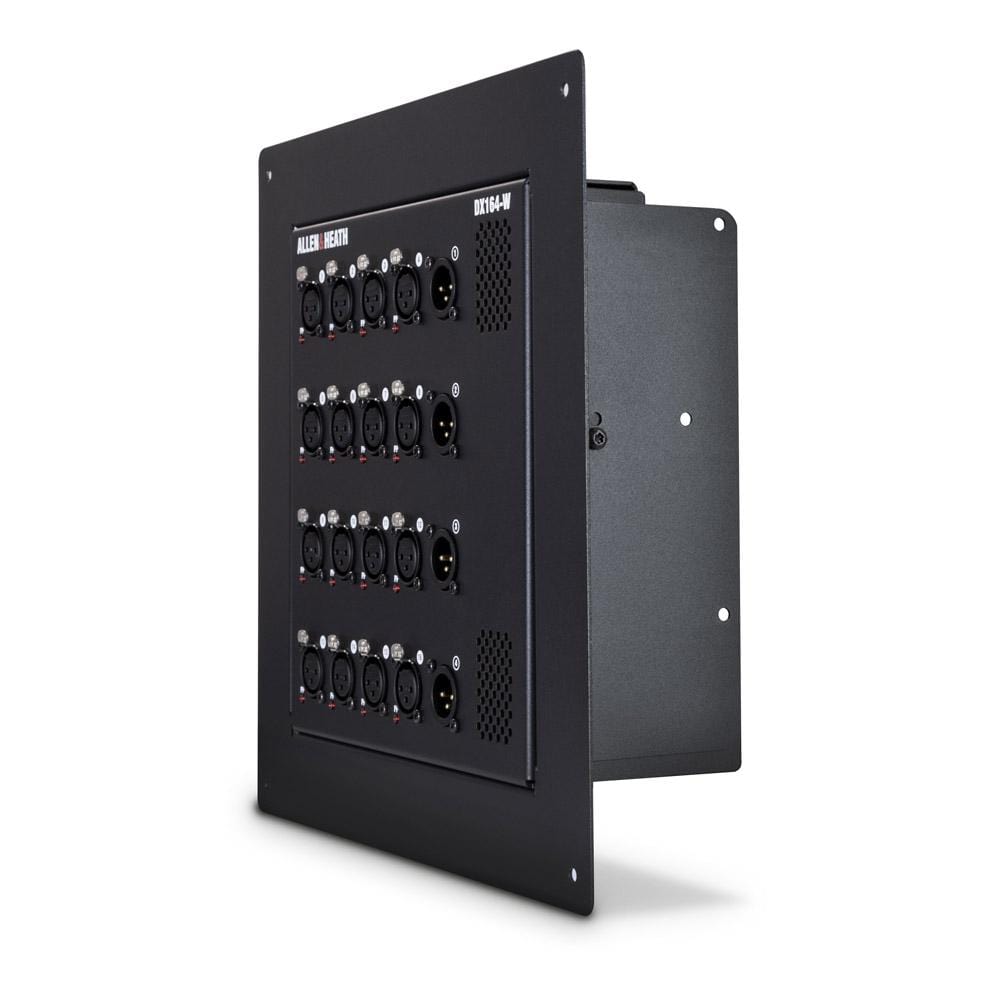

The Expander’s design allows for wall mount operation or, alternatively, installation in a stage “Dip Trap” making it perfect for fixed installations.

Features:

  • Designed for Wall Mount or Dip Trap installation
  • 16 balanced Mic Preamps on XLR
  • Phantom Power LED per Input
  • 4 balanced XLR Line Outs
  • Locking EtherCon ports
  • Daisy chain or redundant audio connection
  • Fits in a standard 12”x12” NEMA backbox
  • Compatible with ACE Backstage 174SLBK stage pocket system
  • 3 power supply options: 100-230V AC powered on IEC or screw terminal blocks, as well as 12V DC power
  • DC power can be used as redundant power supply
  • 96kHz 24bit converters
