Allen & Heath DT 164 W 16 XLR Input Stage Digital I/O Box

Rs. 418,300.00

Allen & Health

Digital Stage Box

AHDI0002

In Stock Sold Out 10

  • 16 XLR inputs, 4 XLR outputs, Phantom LEDs
  • Dante expander with 96kHz/48kHz operation
  • Wall, dip trap, or NEMA box mounting options
  • Redundant or switched mode via EtherCon ports
HURRY ! ONLY 10 LEFT IN STOCK.
Notify Me
wishlist
compare
Print
Eleek Benefits
  • American Express
  • Mastercard
  • Visa
Eleek offers this website, including all information, tools and Services available.
GST Invoice Available
Secure Payments
365 Days Help Desk

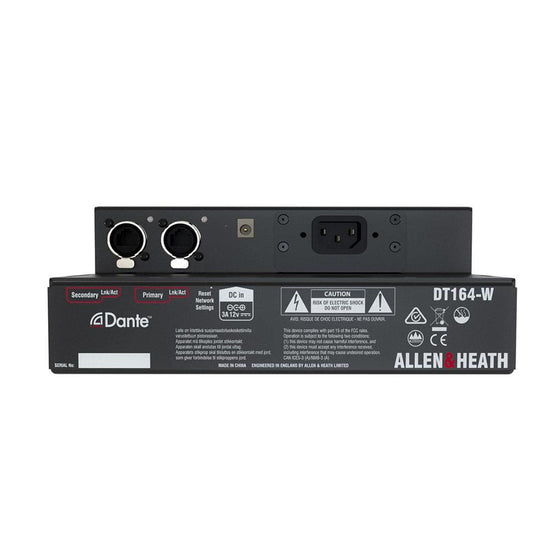

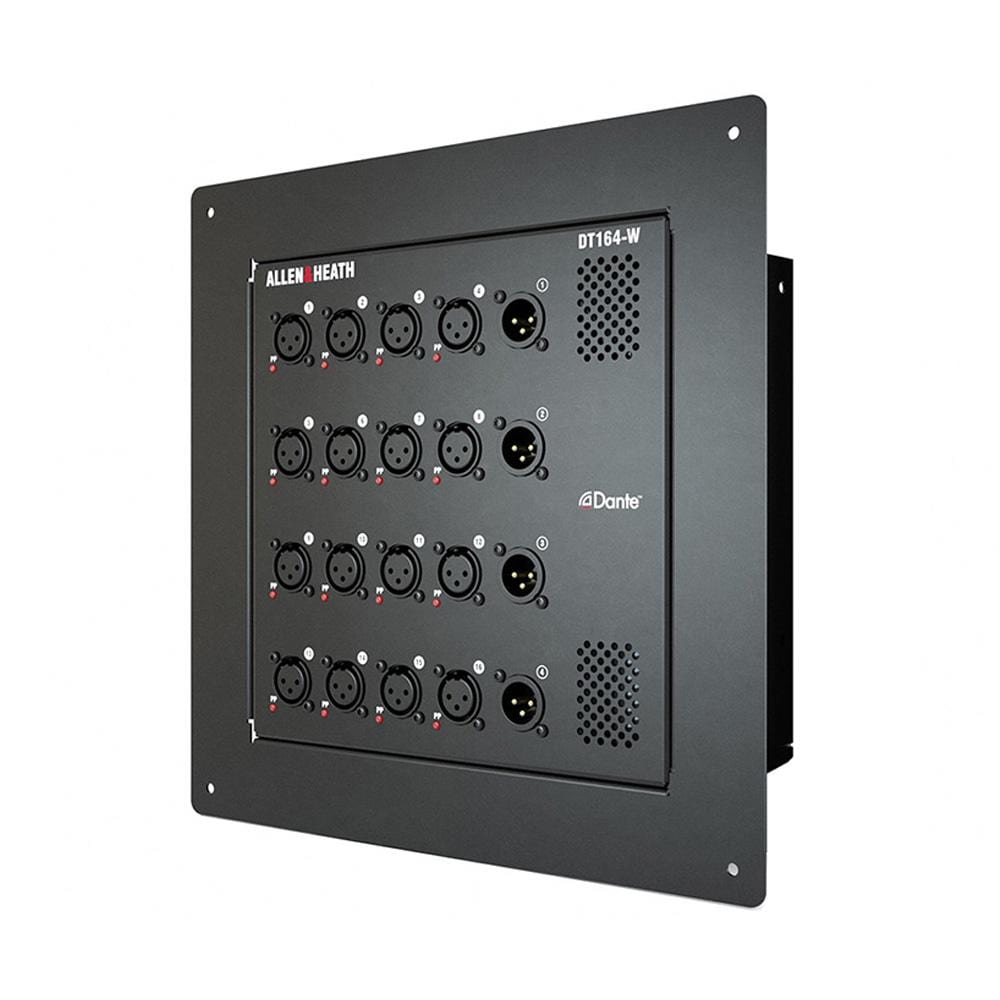

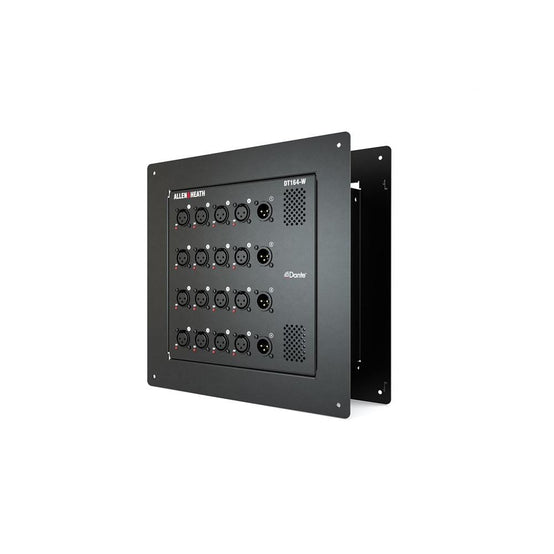

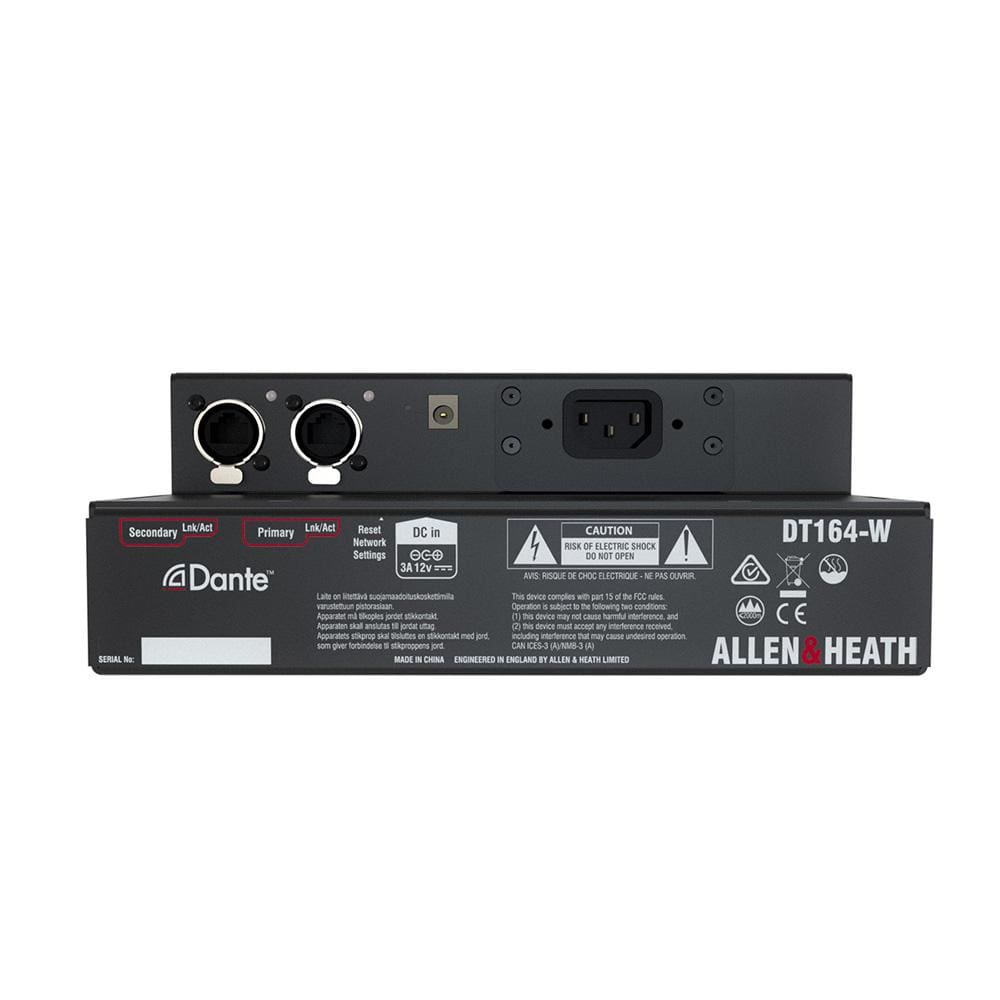

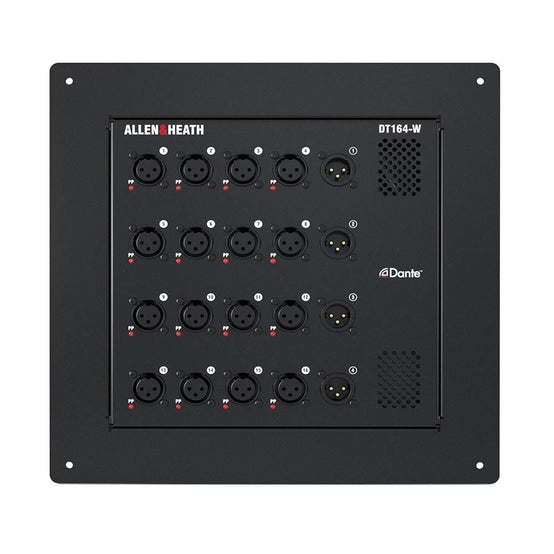

Allen & Heath DT 164 W 16 XLR Input Stage Digital I/O Box

16 XLR Input / 4 XLR Output – 96kHz Dante
The DT164-W provides 16 microphone preamps and 4 line outputs in a versatile wall-mount design for permanent installation. The reversible mounting frame allows for in-wall or on-wall mounting. Additionally, the unit can be fitted in a standard 12×12” NEMA box or equivalent, or mounted in a floor pocket for stage use. The IEC mains power inlet can be replaced with a gland module and screw terminals for fixed installation, and a DC 12V backup supply is also provided.

DT164-W offers the acclaimed Allen & Heath preamps, complete with 96kHz converters for best-in-class sound quality over Dante, plus Primary and Secondary ports for daisy-chain or redundancy through secure EtherCon connectors.

Up to 16 units can be added to an SQ or dLive system when equipped with an SQ Dante or dLive 96kHz Dante card.

Features :

  • Dante audio expander, 96kHz / 48kHz
  • Wall mount or dip trap installation
  • 16 mic preamps on XLR with Phantom Power status LEDs
  • 4 XLR Line Outs
  • Primary and Secondary Dante ports with locking EtherCon
  • Redundant or Switched mode
  • Direct preamp control from dLive and SQ
  • 3 power supply options: 100-230V AC powered on IEC or screw terminal blocks, as well as 12V DC power
  • DC power can be used as redundant power supply
  • Fits in a standard 12”x12” NEMA box
  • Compatible with ACE Backstage 174SLBK stage pocket system
  • AES67 compatible
  • Dante Domain Manager ready
